30MM 150Degree Long Range UHF On metal Asset Ceramic Tag

This tag is designed on ceramic base material, solving the problem that most tags can’t work on metal surfaces and it works continuously in a harsh environment such as assets statistics management, gas container management, small equipment management, industrial manufacturing, etc. It offers market-leading read range, consistency, and reliability in outdoor and industrial applications.


  • Model number:
  • Power:
  • Colour:
  • Dimension:
  • Weight:

Product Details

Physical Features:

MaterialCeramic

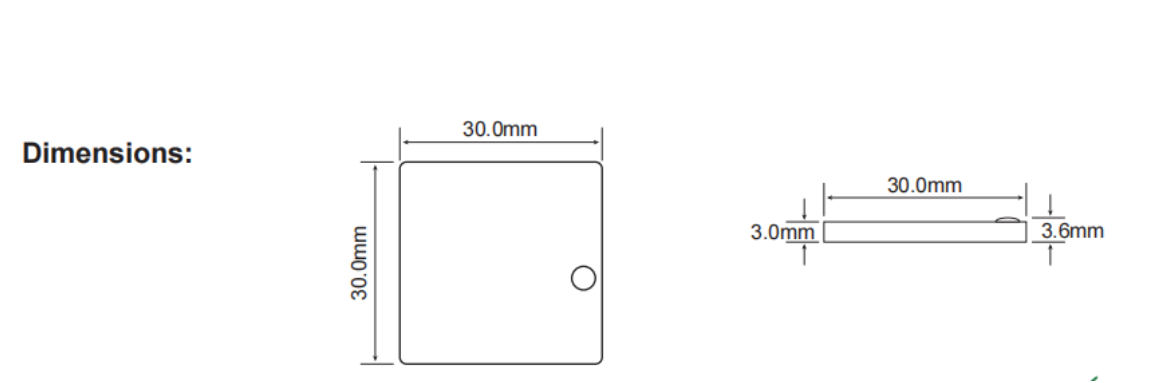

Dimensions30x30x3mm (L x W x T)
Weight14g
Working Temp-40~+150℃
Storage Temp-40~+250℃
IP RatingIP68
Humidity98% non-condensing
RFID StandardISO/IEC 18000-6 Type C (EPC Gen2)
Chip TypeNXP UCODE 9
EPC Memory128bits
User Memoryno
Fxied RFID Read Range 12meter
Handheld reader Read Range 6meter
Data Storage> 10 years
Re-write100,000 times
Installation3M Adhesive
CustomizationLogo, barcode/QR code, number printing, encoding, design, etc.
