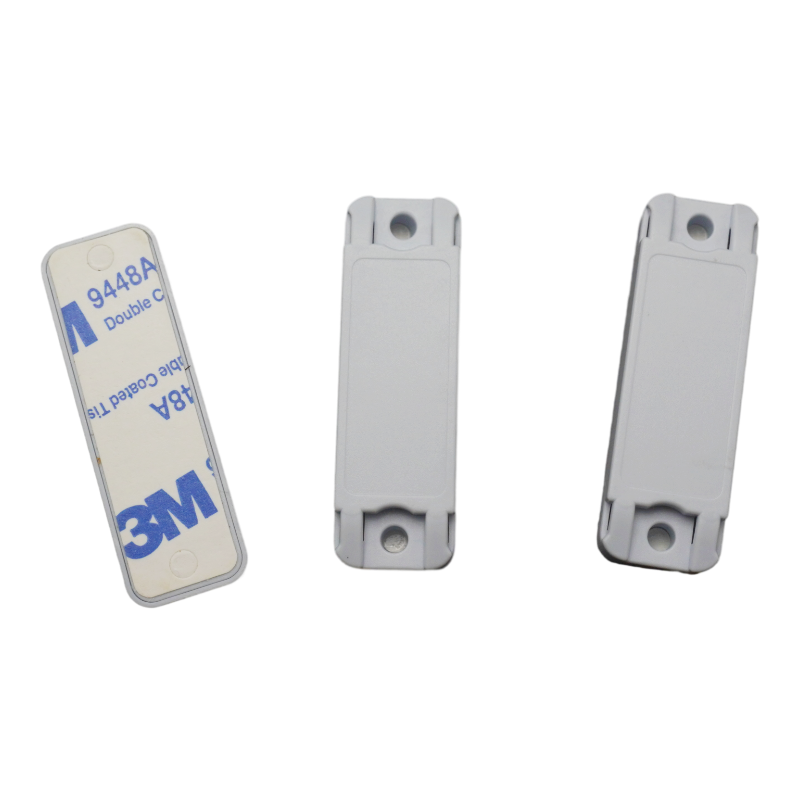

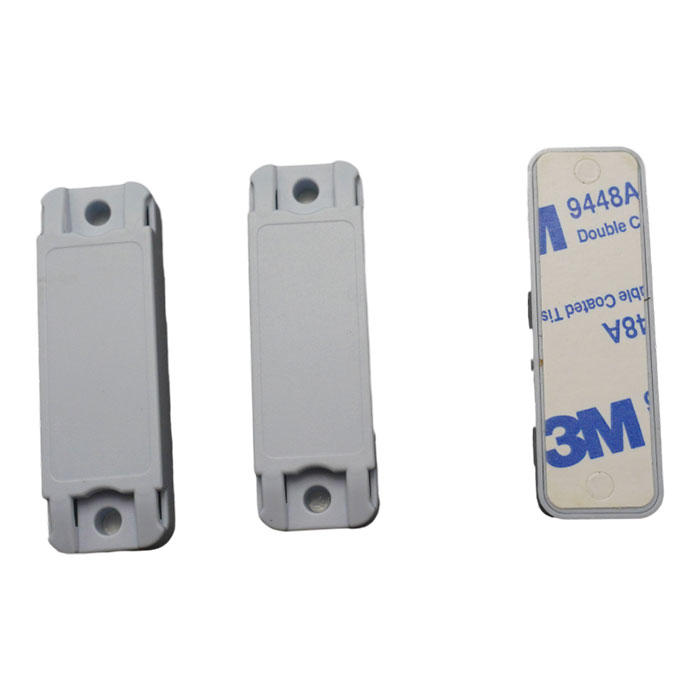

50*18MM UHF ABS Anti-metal RFID Tag

Typical Feature The surface of the product is smooth and flat without the protruding due to chip packaging； Any label with printed or printed content can be pasted on the surface of the product； The tag surface can also be exquisite si

Model number：
Power：
Colour：
Dimension：
Weight：

CONTACT NOW down load to pdf

Product Details

Typical Feature

The surface of the product is smooth and flat, without the protruding due to chip packaging；

Any label with printed or printed content can be pasted on the surface of the product；

The tag surface can also be exquisite silk screen；

Product reading distance；

Product installation is flexible and convenient；

Application

Warehouse shelf management；

Warehouse locomotive equipment management；

IT facility chassis management；

Management of large and medium metal containers；

Power box, power facility management；

Indoor office equipment and facility management with metal casing；

Building wall or column management (built-in)；

Personnel inspection management；

Management of public facilities such as street lights and traffic light poles；

Large and medium-sized fluid valve or pipeline management

Model	NR-8724
Protocol	EPC Class1 Gen2; ISO18000-6C
frequency	860-960MHz
Chip	Impinj R6P
memory	EPC128bits TID 96bits Kill password 32bit
Work	Read and Writer
memory lead time	50 years
Warranty	1year
Material	ABS
Color	black,grey ,white ,bule,red customized
Size	50188.2mm
Temperature	-25℃~ +85℃
Storage temperature	-30℃~ +110℃
Save humidity	5%～95%
Adhesive	3M 300LSE
weight	1g
package	500pcs/bag
Alcohol test	95%Concentration alcohol test passed
High and low temperature alternating test	-40℃ to +80℃ 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test
RoHS	yes
IP degree	IP65
Handheld reader on metal surface 5dbi antenna	0-3Meter Reading distance is related to environment and reader performance
Fixed UHF RFID Reader (12dbi antenna)	0-5meter Reading distance is related to environment and reader performance
Polarization direction	Linear Polarization
Text	100% tested it before we send out
