30MM 150Degree Long Range UHF On metal Asset Ceramic Tag

This tag is designed on ceramic base material solving the problem that most tags cant work on metal surfaces and it works continuously in a harsh environment such as assets statistics management gas container management small equipment m


  • Model number:
  • Power:
  • Colour:
  • Dimension:
  • Weight:

Product Details

This tag is designed on ceramic base material, solving the problem that most tags can’t work on metal surfaces and it works continuously in a harsh environment such as assets statistics management, gas container management, small equipment management, industrial manufacturing, etc. It offers market-leading read range, consistency, and reliability in outdoor and industrial applications.

Physical Features:

Material Ceramic

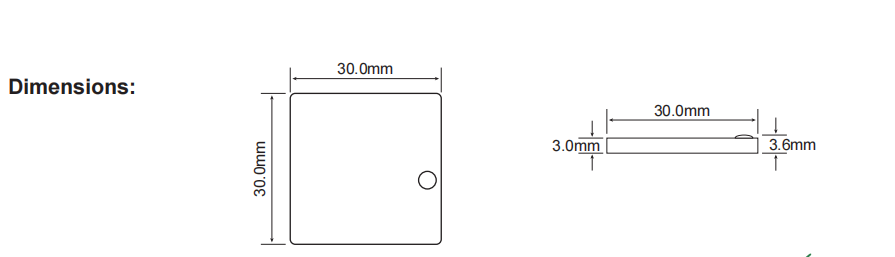

Dimensions 30x30x3mm (L x W x T)
Weight 14g
Working Temp -40~+150℃
Storage Temp -40~+250℃
IP Rating IP68
Humidity 98% non-condensing
RFID Standard ISO/IEC 18000-6 Type C (EPC Gen2)
Chip Type NXP UCODE 9
EPC Memory 128bits
User Memory no
Fxied RFID Read Range  12meter
Handheld reader Read Range  6meter
Data Storage > 10 years
Re-write 100,000 times
Installation 3M Adhesive
Customization Logo, barcode/QR code, number printing, encoding, design, etc.
