12*7MM UHF RFID PCB Tools Anti-metal Tag

NR-1207 is a general-purpose UHF anti-metal tag made of PCB material. In the market its reading range performance can reach or exceed other tags that are about 2M longer. Its moderate size is one of the most widely used tags. Typical Featu

Model number：
Power：
Colour：
Dimension：
Weight：

CONTACT NOW down load to pdf

Product Details

NR-1207 is a general-purpose UHF anti-metal tag made of PCB material. In the market, its reading range performance can reach or exceed other tags that are about 2M longer. Its moderate size is one of the most widely used tags.

Functional Specifications

Protocol	EPC Class1 Gen2; ISO18000-6C
Frequency	902-928MHz (Other frequencies available for the same size)
Chip	Ucode 9(Other chips available in the same size)
Chip memory	EPC 96-bit, TID 96-bitKill password 32-bit
Read and write performance	Readable and writable (customers can write content repeatedly into the chip)
Data saving	50 years
Warranty	1 year

Physical Specification

Main material	FR4
Color	Black
Size	12 07 5mm

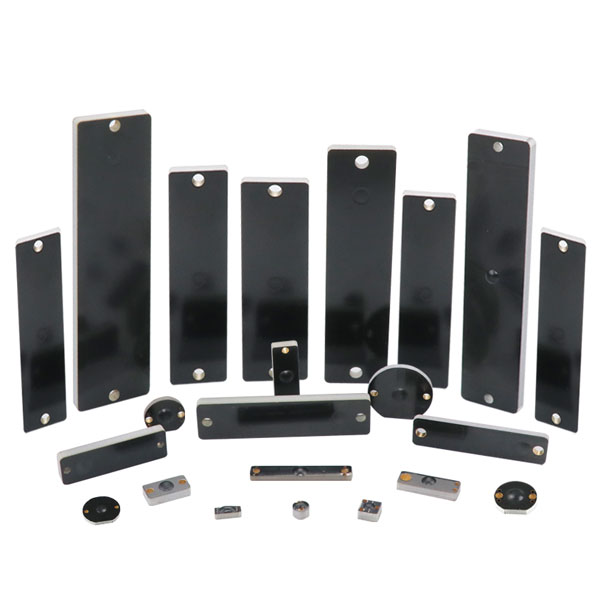

More Size available	8020MM,7020MM,5313MM,664MM,3613MM, 189MM.127MM,105MM etc
Working temperature	-25℃~ +95℃
Storage temperature	-40℃~ +120℃
Storage Humidity	5%～95%
Installation method	3M300LSE adhesive, or screws, rivets, super glue
Weight	12g/piece
Package	2100 per box, 0.0244 cubic meters per box

Reliability Specification

Drop test	Passed 200 times drop test at 1 meter height
Alcohol test	95% alcohol test passed
Gasoline test	No. 92 gasoline wipe passed
High and low temperature alternating	-40℃～+95℃100 high and low temperature alternating cycles, a total of 30 consecutive days passed the test
Rapid cooling test	After heating at 185 degrees for 1.5 hours, put it in 10 degrees water quickly and accurately, take it out and pass the function test at room temperature
RoHS	Pass
IP Grade	IP68

*The above test is the test result under the laboratory standard conditions. In the actual use environment, due to the many and complicated influencing factors, the final condition of the product may be different from the use environment.

Performance Characteristics

Fixed reader (on metal)	0-3 meters (12dbi long-distance fixed reader, if other readers, the reading distance may be different)
Handheld reader (on metal)	0-2 meters (reading distance under 5dBi clamshell circularly polarized antenna in open outdoor occasions, if other handhelds are used, the reading distance may be different)
Tag polarization	Linear polarization
Tag starting power	Less than -12dBm@920MHz
Tag radiation power	More than - 20dBm@920MHz
Appliation: asset management ,tool managment
