0-10meter Long Range Passive RFID On metal Sticker Tag

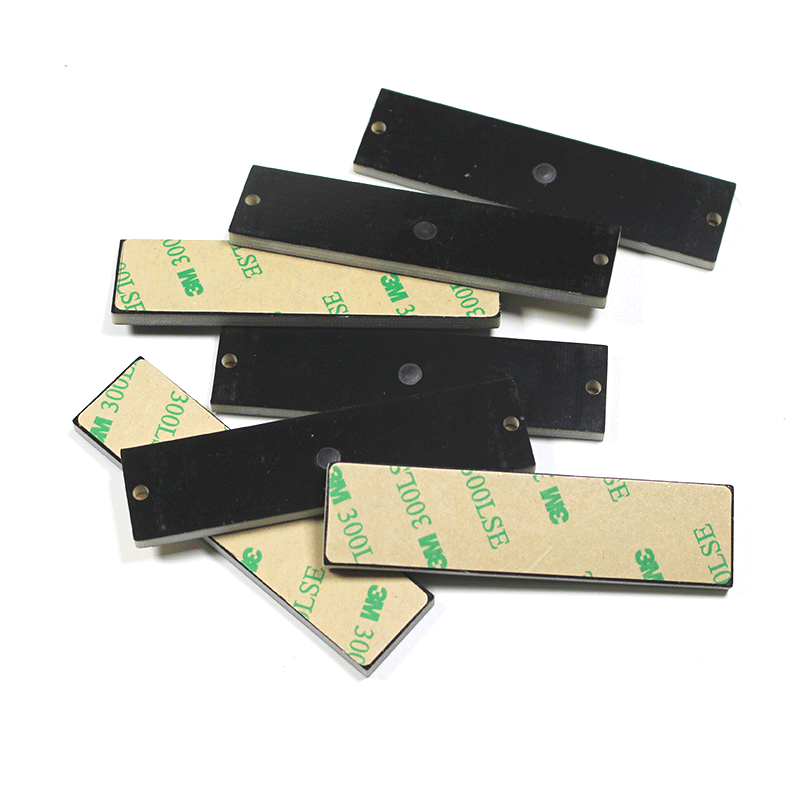

NR-K8020 is a general-purpose UHF anti-metal tag made of PCB material. In the market, its reading range performance can reach or exceed other tags that are about 10CM longer. Its moderate size is one of the most widely used tags.
| ISO | EPC Class1 Gen2; ISO18000-6C |
| frequency | 902-928MHz or 865-868Mhz |
| Chip | Monza 4QT or UCODE 8 |
| memory | EPC 128bits |
| writable | yes rewritable |
| memory lead time | fifty years |
| Warranty | 1year |
| Material | FR4 |
| Color | black |
| Size | 80x20*3.55mm |
| Temperature | -25C~ +160C |
| Storage temperature | -30 C~ +110 C |
| Save humidity | 5%～95% |
| Adhesive | 3M 300LSE |
| weight | ~1g |
| package | 500pcs/bag |
| Drop test | Hih 1Meter /200times |
| Alcohol test | 95%Concentration alcohol test passed |
| Gasoline test | NO. 92 test passed |
| High and low temperature alternating test | -40 degrees to +150 degrees 7 times high and low temperature alternating cycle, a total of 2 consecutive days passed the test |
| RoHS | yes |
| IP degree | IP65 |
| Fixed RFID reader on metal surface (JT-8290A) | about 10Meter |
| Handheld reader on metal surface(JT-901) | about 5M ( 5dbi RFID handheld reader) |
| Polarization direction | Linear Polarization |
| Text | 100% tested it before we send out |
