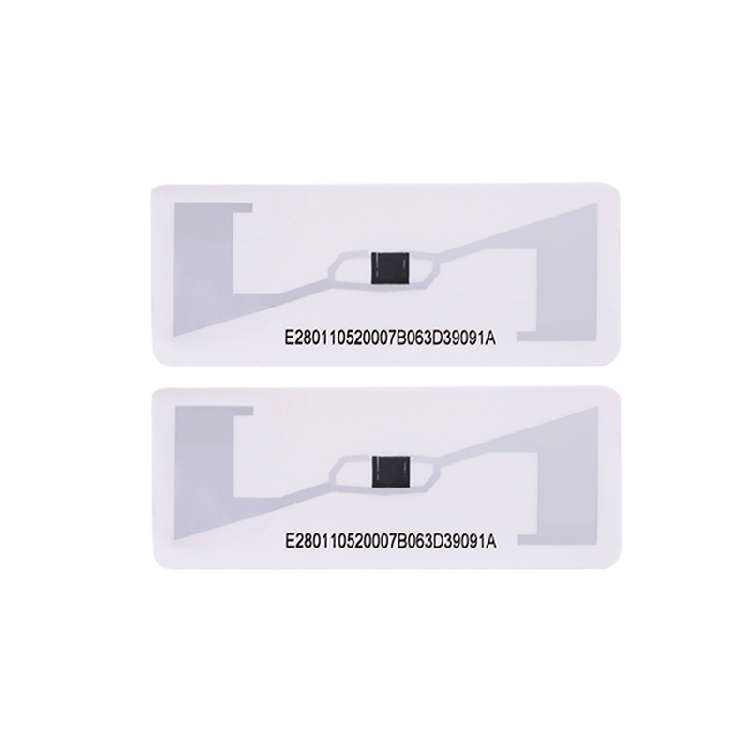

860-960Mhz UHF RFID Windshield Tag with UV Protection

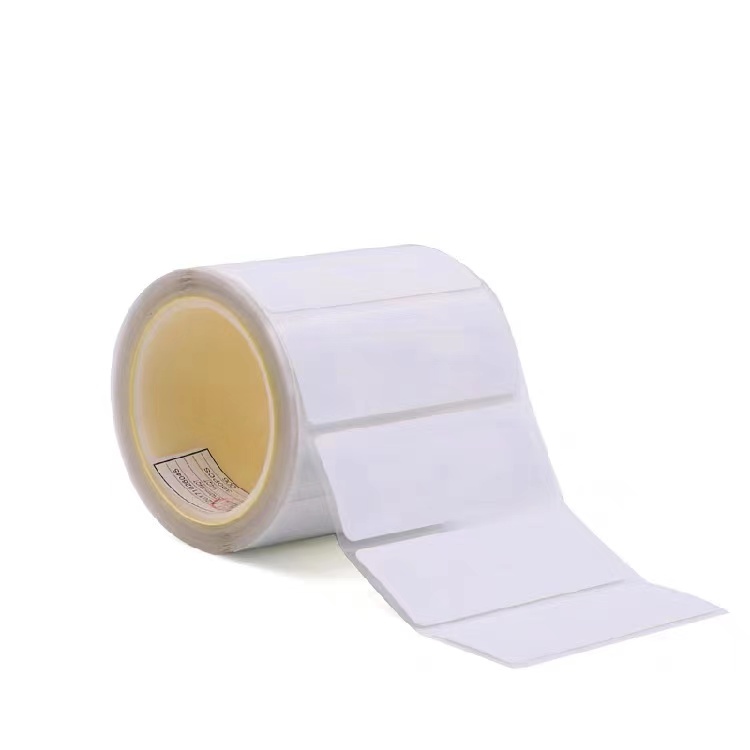

NR11040 with special substrate is a non-transferable tamper-proof label for vehicle windshields. for the purpose of vehicle identification and electronic toll collection. Supplied in roll form as finished label with pre defined encoding the tag allows additional data encoding as per requirements specified.
| Parameter | Specifications | ||||
| Tamper Proof RFID Label |
RFID Tamper Proof Label specially designed for tagging directly to windshield of an automobile. Any attempt to ripor tamper the tag should result in disabling the functionality of the tag and thus maintain a unique one to one relationship between the tag and the vehicle thereby preventing unauthorized tag removal and transfers. Tampering RFID label should result in following actions: • Destroy Damage the Antenna • Break the chip-antenna connection. The tags and should ensure reliable tamper indication even when sophisticated tamper methods of Mechanical attack (e.g. Razor Blades, Knives etc.), Chemical Attack (Corro- sives, solvents) and thermal attacks are employed |
||||
| Reading distance | 0-15M | ||||
| Tag's Size | 110x40MM | ||||
| Chip |
EPCglobal Gen2 Tags
- Operating frequency: 860 - 960 MHz
- RF interface: ISO/IEC 18000-6C
- EEPROM
- 128 bits EPC
- 96 bits TID
- User Memory
- Access and Kill passwords
|
||||
| Printing & Design | Cusotomized | ||||
| Relative Humidity | 95% Condensing | ||||
| Operating Temperature | -20°C to 80°C | ||||
| Data Retention |
with UV protection for normal sunlight exposure and ambient temperature of 45 Degree C. |
||||
