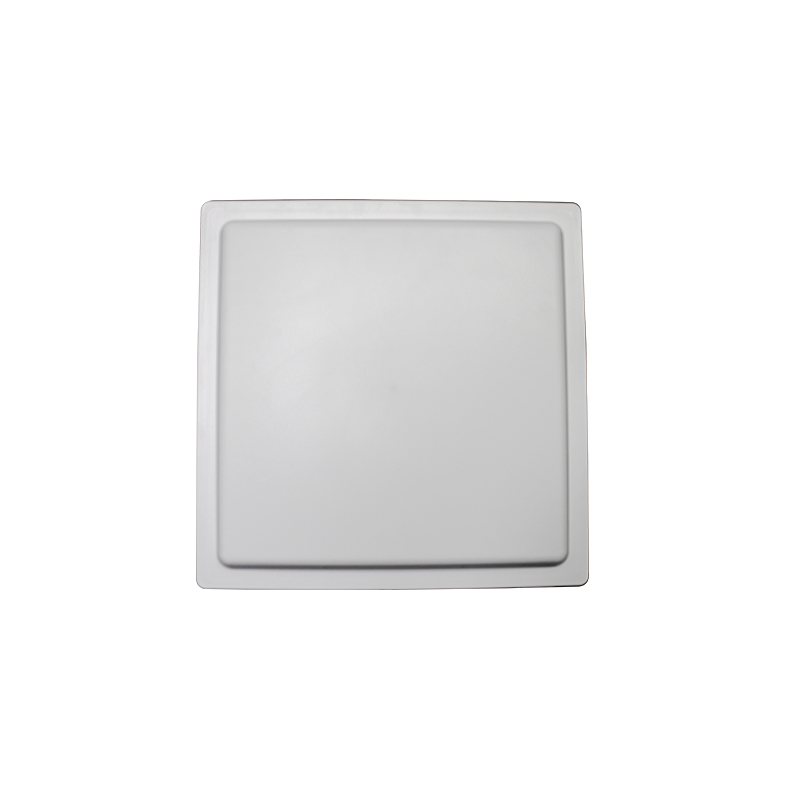

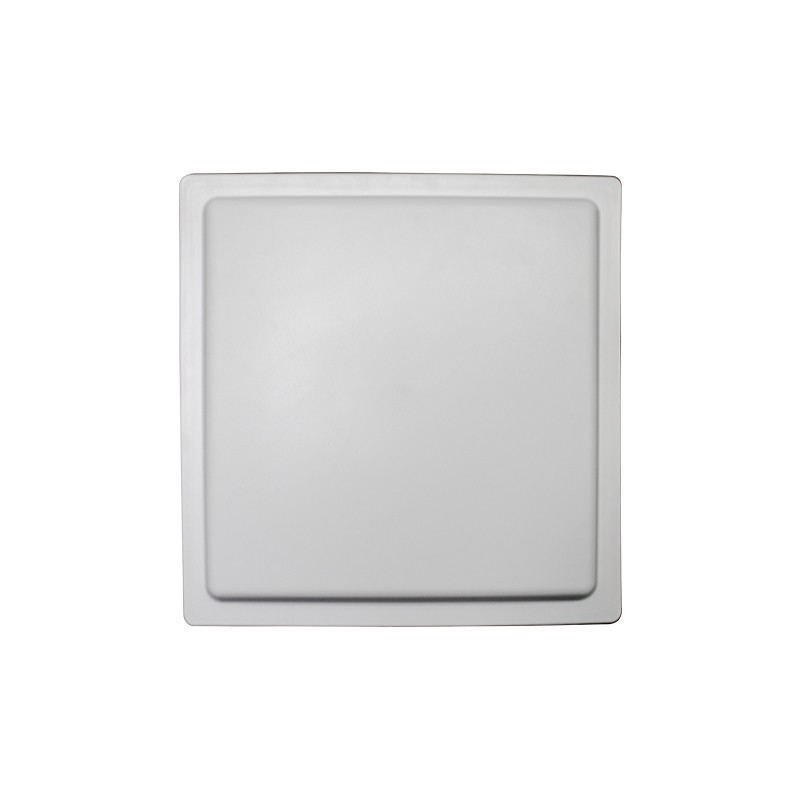

0-30meter UHF RFID Long-Range Integrated Reader NR-809
Applications
- Vehicle parking, intelligent weighing
- Warehouse, logistics management
- Asset management
- Production line management
| Performance Index | |
| Operating Frequency | 902 - 928MHz, 865 - 868MHz, RF band customized (optional) |
| Frequency Hopping | FHSS or Fixed Frequency |
| Power Output | +20dBm ~ +30dBm@50Ω load, 1dBm each step |
| Antenna | Built-in 12dBi linear polarization antenna |

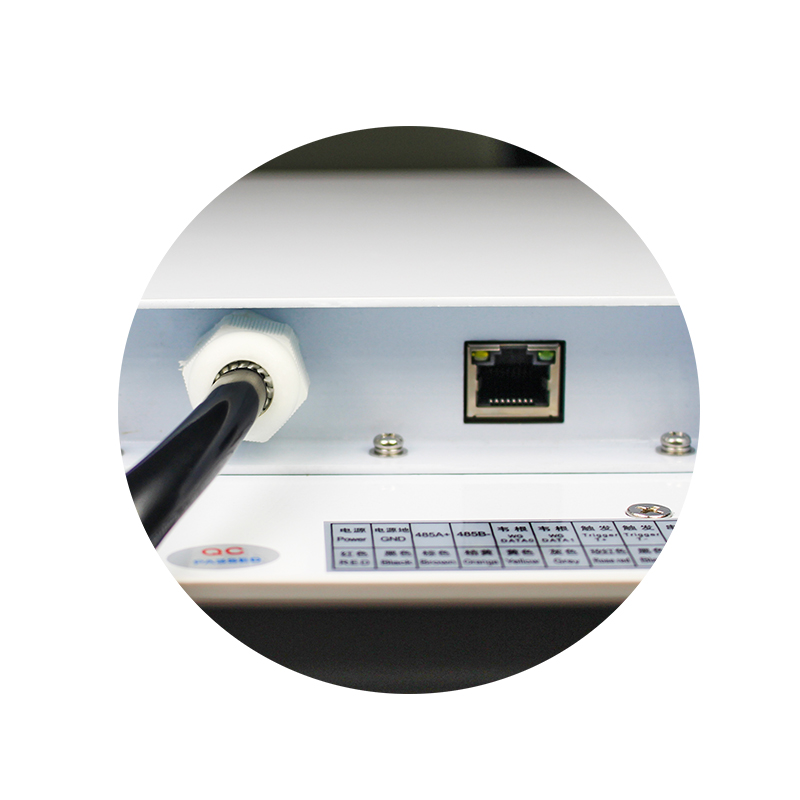

| Communication Interfaces | RS-232, 10M/100M Ethernet interfaces |
| Optional Interfaces | RS-485, Wiegand 26/34/66/POE |
| Optional Wireless | 4G LTE or 802.11 WIFI module |
| Module | |
| Optional I/O Interfaces | 2-channel Relay Output, 2-channel Trigger Input, 2-channel level Output (optional) |
| Firmware Update | Ethernet |
| Application Software Platform | API(C++, C#) development kit (can be customized) |
| Tag Operation | |
| Tag Protocol | EPC Class 1 Gen 2(ISO18000-6C) |
| Reading Range | 0~30m |
| Writing Range | 0~5m |
| Mechanical/Electric Performance | |
| IP Rating | IP65 |
| Indicator | Buzzer and LED(Power, Antenna, Reading/Writing) |
| Power | DC 12V Input, PoE optional |
| Power Assumption | 2W(Standby), 10W(Working) |
| Product Dimension | 450mm x 450mm x 50mm |
| Package Dimension | 600mm x 500mm x 110mm |
| Net Weight | 3.5kg |
| Gross Weight | 6.23kg |
| Operating Temperature | -40℃ ~ +60℃ |
| Storage Temperature | -60℃ ~ +80℃ |
| Humidity | 5%～ 95%(non-condensing) |
