UHF RFID Industrial Grade Waterproof RFID Reader

Technical Parameters Frequency 902-928MHzor 865-868Mhz Frequency modulation method Broad spectrum frequency modulation (FHSS) or fixed frequency, software settings RF output 20-26dBmadjustable；50 ohm load Width voltage 9-24V Antenna 3dBi

Model number：
Power：
Colour：
Dimension：
Weight：

CONTACT NOW down load to pdf

Product Details

Technical Parameters
Frequency	902-928MHz or 865-868Mhz
Frequency modulation method	Broad spectrum frequency modulation (FHSS) or fixed frequency, software settings
RF output	20-26dBm adjustable；50 ohm load
Width voltage	9-24V
Antenna	3dBi
Communication port	RS232,RS485,TCP/IPor Modbus RTU
Communication rate	Rate 9600～115200bps，
Reliable firmware upgrade	Scalable upgrade mechanism
SDK	C#,Java,
Working status display mode	LED indicator (blue, red), buzzer
Rewrite and Read
Read distance	0-2m
Write distance	0-30CM
Protocol	EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Maxreceiving sensitivity	-65 dBm
Performance

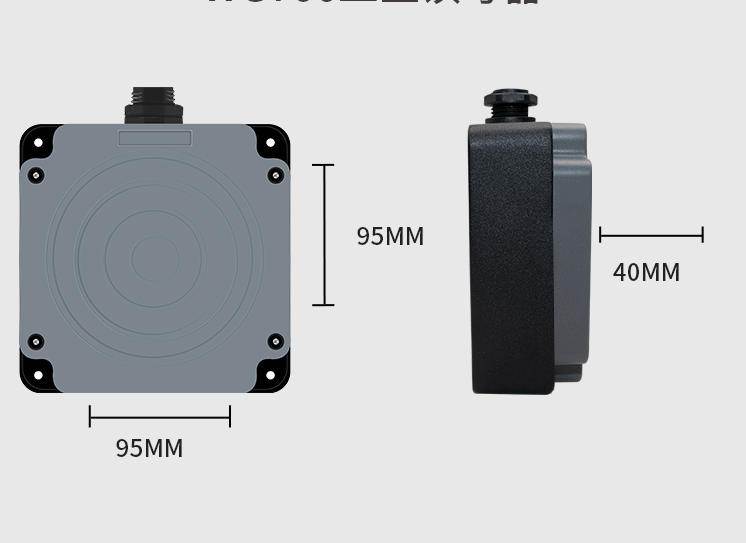

Size	959540mm
Equipment power supply	Industrial grade wide voltage design, 9-36V DC
LED indicator	Blue: card reading indicator; red: power indicator
Weight	450g
Protection level	IP67
Connector form	Round waterproof M5 pin socket connector
Connector pin definition	1：GND； 2：TXD； 3：RXD；4：DC； 5：GND
Operating temperature	-20ºC ～60ºC
storage temperature	-20 ºC～85 ºC
Working humidity	5%～95%RH, Non-condensing
