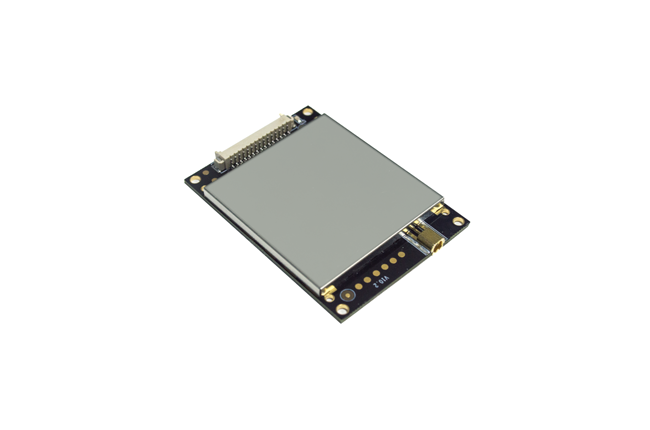

Indy R2000 Single Port UHF RFID Module With SDK

Performance Index Operating Frequency 865-868MHz; 902-928MHz other RF band customized (optional) Frequency Hopping FHSS or Fixed Frequency Wireless Data Rate 40kbps Modulation ASK Power Output +20dBm ~ +30dBm@50 load 1dBm each step Antenn

Model number：
Power：
Colour：
Dimension：
Weight：

CONTACT NOW down load to pdf

Product Details

Feature:
◆Support ISO18000-6C Gen 2 protocol;
◆Stable reading to 25m(with external 12dbi antenna, Alien H3 9662 tag)
◆Excellent ability of reading and writing, better to prevent collision;
◆Support multiple frequency standard
◆Good heat dissipation effect to ensure the stability of equipment

Item No.	NR-2600
Performance parameters
Working Frequency	902~928 MHz or 865~868MHz
Protocol	ISO18000-6C(EPC C1 GEN2)
Output power	3 – 33dBm(Adjustable)
Reading Range	With white card & 12dBi antenna, 30m
Read label	500pcs @ 96 bit EPC
RF Single Port	MMCX
Communication Protocol	Asynchronous serial port
UART port	Baud Rate 115200, TTL
USB port	One-way USB2.0 all speed port
Current rating	Max 1A
Standby current	<60mA
Support	US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 China , Korea , Malaysia
Physical parameters:
Item size	55x35x4.8MM
Net weight	12g
Working temperature	-20℃~+50℃
Storage temperature	-30℃~+75℃
Operating power	DC4.5V~5.5V
