Frequency

860-960Mhz

Chip

NXP Ucode9

Memory

EPC 128bits

Read/write

Yes (EPC)

Data Storage

20 years

Lifetime

250 wash cycles or 2 years from shipping date

(whichever comes first)

Material

Textile

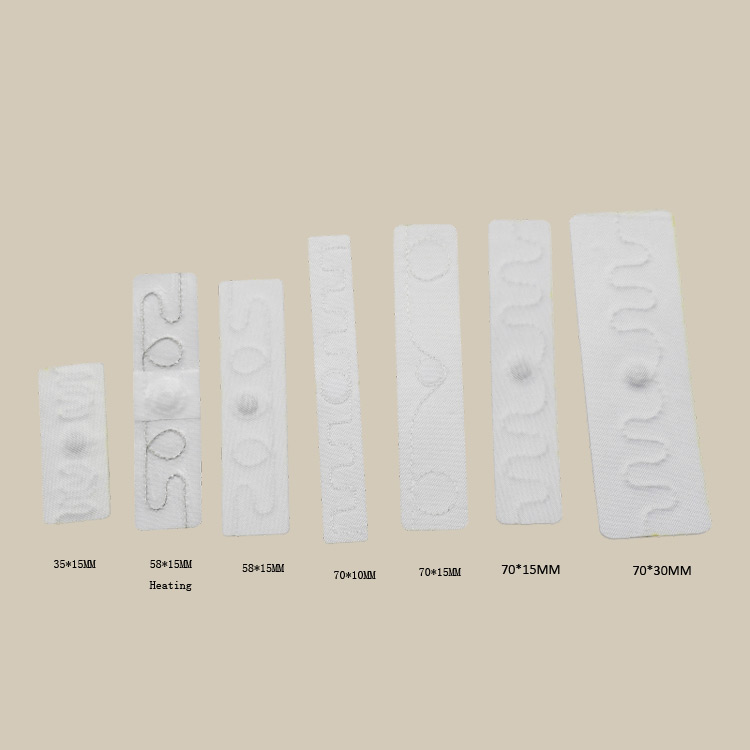

Dimension

58*15MM

Storage Temperature

-40℃~ +85 ℃

Operating Temperature

1) Washing: 90℃(194οF), 15 minutes, 200 cysle

2) Pre-drying in Tumbler: 180℃(320οF), 30minutes

3) Ironer: 180℃(356οF), 10 seconds, 200 cycles

4) Sterilization Process: 135℃(275οF), 20 minutes

Mechanical Resistance

Up to 60 bars

Delivery format

Single

Installation Method

1) Sewing or put into pouch/hem.

2) Heat sealing under 215℃@12-15 seconds with 0.6 MPa~0.8 MPa.

Weight

~ 0.7g

Package

Antistatic bag and carton

Color

White

Power Supply

Passive

Chemicals

Normal common chemicals in the washing processes

RoHS

Compatible

Read

distance

Up to 6 meters Fixed RFID Reader(12dbi)

Upto 3 meters 5dbi handheld reader)

Polarization

Liner
