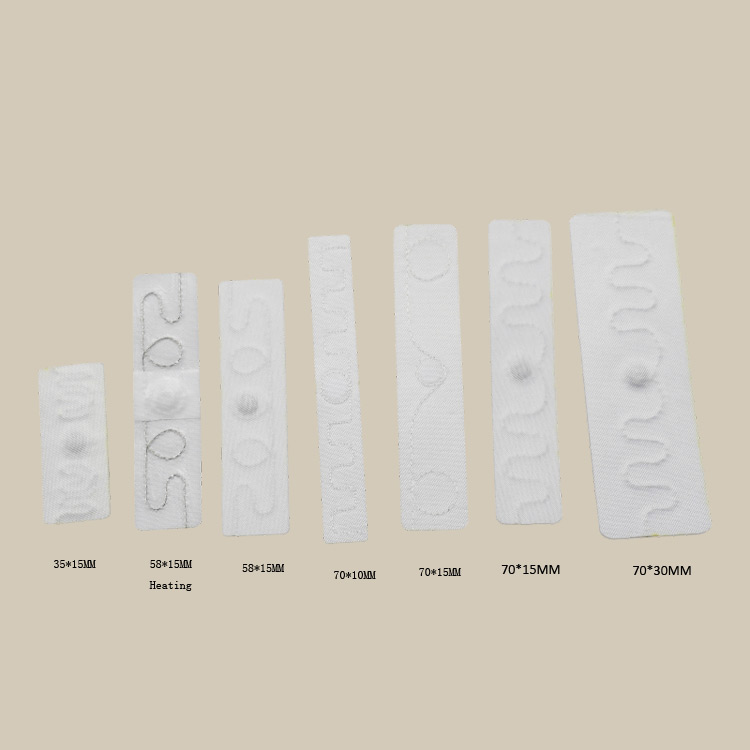

75x15MM RFID Fabric Tag with Unique Tag

Compliance EPC Class1 Gen2; ISO18000-6C Frequency 902-928MHz 865~868MHz(Can customize frequency) Chip NXPUcode8/UCODE9 Memory EPC 96bits/128bits Read/write Yes (EPC) Data Storage 20 years Lifetime 200 wash cycles or 2 years from shipping

Model number：
Power：
Colour：
Dimension：
Weight：

CONTACT NOW down load to pdf

Product Details

Compliance	EPC Class1 Gen2; ISO18000-6C
Frequency	902-928MHz , 865~868MHz (Can customize frequency)
Chip	NXPUcode8/UCODE9
Memory	EPC 96bits/128bits
Read/write	Yes (EPC)
Data Storage	20 years
Lifetime	200 wash cycles or 2 years from shipping date (whichever comes first)
Material	Textile
Dimension	75( L) x 15( W) x 1.5( H) (Cancustomizethesizes)
Storage Temperature	-40℃~ +85 ℃
Operating Temperature	1) Washing: 90℃(194οF), 15 minutes, 200 cysle 2) Pre-drying in Tumbler: 180℃(320οF), 30minutes 3) Ironer: 180℃(356οF), 10 seconds, 200 cycles 4) Sterilization Process: 135℃(275οF), 20 minutes
Mechanical Resistance	Up to 60 bars
Delivery format	Single
Installation Method	sewing or cable tie
Weight	~ 0.7g
Package	Antistatic bag and carton
Color	White
Power Supply	Passive
Chemicals	Normal common chemicals in the washing processes
RoHS	Compatible
Read distance	Up to 5.5 meters (ERP=2W) Up to 2 meters( With ATIDAT880handheldreader)
Polarization	Liner
