UHF HEAT SEAL LAUNDRY TAG/Iron on UHF Tags

UHF Heat Seal Laundry Tag is specially designed for textile/linen product tracking in laundry industry or uniform rental industry. The tag is made of steel wire and woven fabric it lasts more than 200 wash dry cleaning cycles. The tag is b

Model number：
Power：
Colour：
Dimension：
Weight：

CONTACT NOW down load to pdf

Product Details

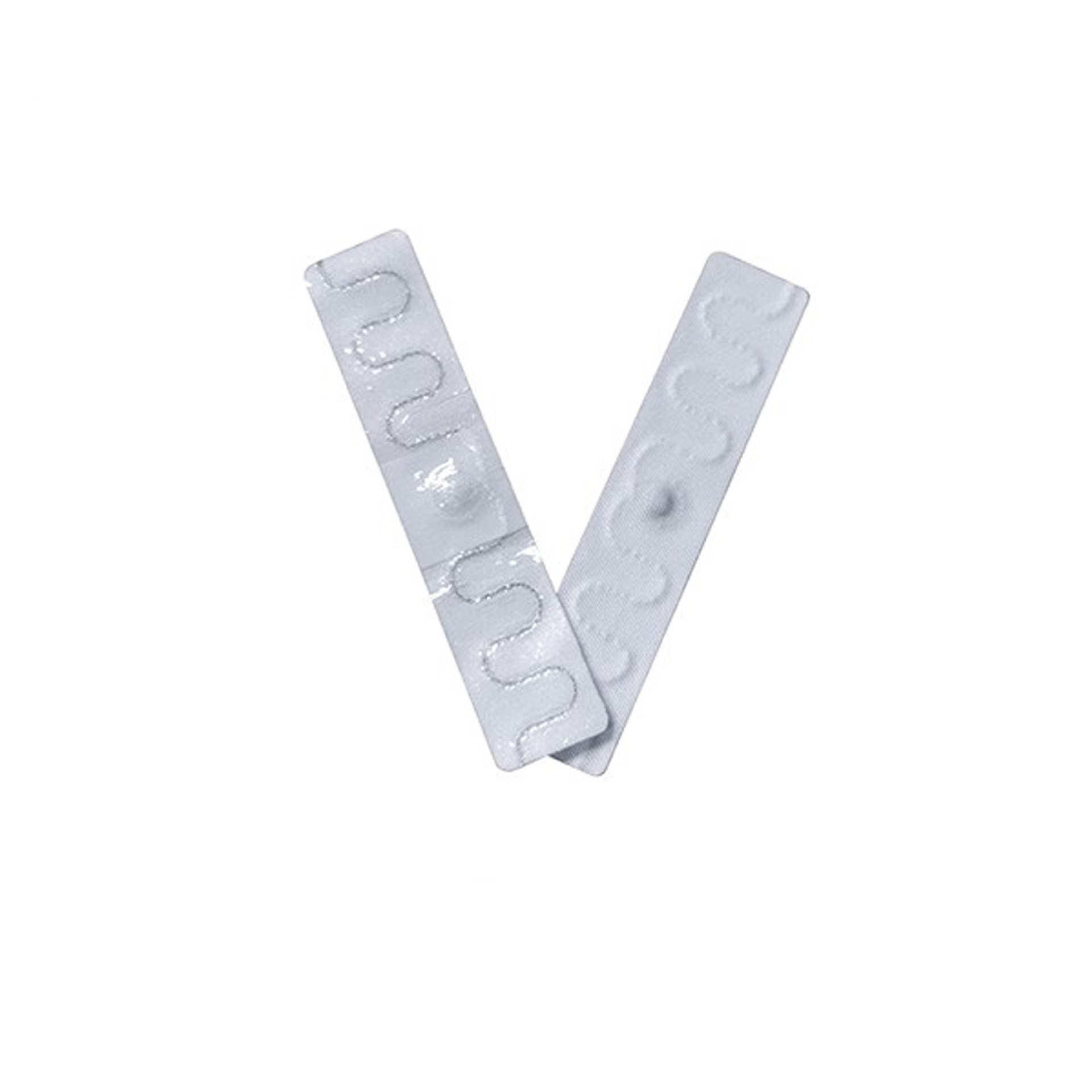

UHF Heat Seal Laundry Tag is specially designed for textile/linen product tracking in laundry industry or uniform rental industry. The tag is made of steel wire and woven fabric, it lasts more than 200 wash & dry cleaning cycles. The tag is backing with hot melt glue for the purpose of affixing via heat-seal method, thus it doesn't require sewing work for installation.

UHF Heat Seal Laundry Tag complies with ISO18000-6C standard and work at frequency of 860~960MHz. This tag is normally embedded with Impinj Monza r6p or r6 or NXP Ucode7M chip or upon client's request.

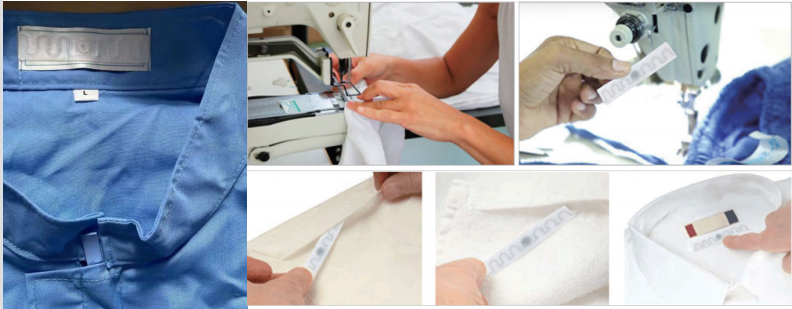

UHF Heat Seal Laundry Tag is made at a smart size and it can be easily affixed onto textile/linen products by an ironer.

Product Applications:

Digital laundry, linen product management at hotel/Spa/Club/Healthcare, Uniform management, Rental Industry etc.

Product Name	UHF Heat Seal Laundry Tag
Electronic Parameter
Working Frequency	860~960MHz
Chip	NXP UCODE 9
Protocol	ISO18000-6C
Memory	EPC 128bits; TID 48bits; no user
Read/Write Endurance	100,000 times
Data Retention	> 10 years
Read Distance	Uo to 10meter (depend on reader and environment)
Physical Property
Dimension & Weight	70x15x1.5mm
Mounting Method	heat seal via ironing at +210° C for 15 seconds
Affixes To	textile/linen products
Material	steel wire+COB+woven fabric
Storage Temperature	-20°C to +85° C
Operating Temperature	Washing 85° C/15minutes; Ironing 190° C/12seconds; Drying 180° C/20minutes; Sterilization 135° C/20minutes; Pressure 60bars;
Customization	Laser printing and encoding upon request
Packing Details
Bag Qty		200pcs/bag
Carton Qty		10 bags total 2000pcs in carton
