Frequency

902-928MHz , 865~868MHz (Can customize

frequency)

Chip

NXP Ucode79

Memory

EPC128bits

Read/write

Yes (EPC)

Data Storage

20 years

Lifetime

250 wash cycles or 2 years from shipping date

(whichever comes first)

Material

Textile

Dimension

75( L) x 15( W) x 1.5( H) (Cancustomizethesizes)

Storage Temperature

-40℃~ +85 ℃

Operating Temperature

1) Washing: 90℃(194οF), 15 minutes, 200 cysle

2) Pre-drying in Tumbler: 180℃(320οF), 30minutes

3) Ironer: 180℃(356οF), 10 seconds, 200 cycles

4) Sterilization Process: 135℃(275οF), 20 minutes

Mechanical Resistance

Up to 60 bars

Delivery format

Single

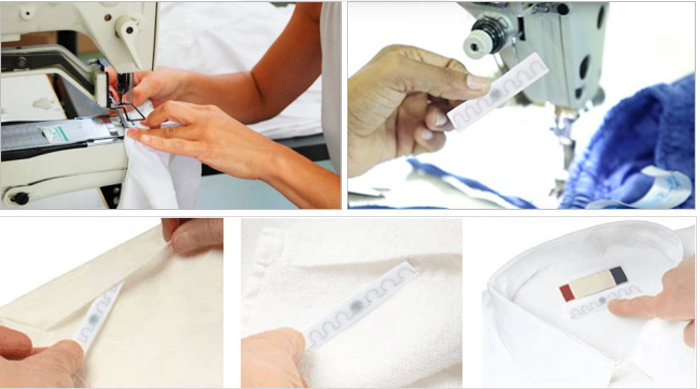

Installation Method

sewing or cable tie

Weight

~ 0.7g

Package

Antistatic bag and carton

Color

White

Power Supply

Passive

Chemicals

Normal common chemicals in the washing processes

RoHS

Compatible

Read

distance

Up to 12 meters Fixed RFID Reader

Upto 7  meters

Polarization

Liner
