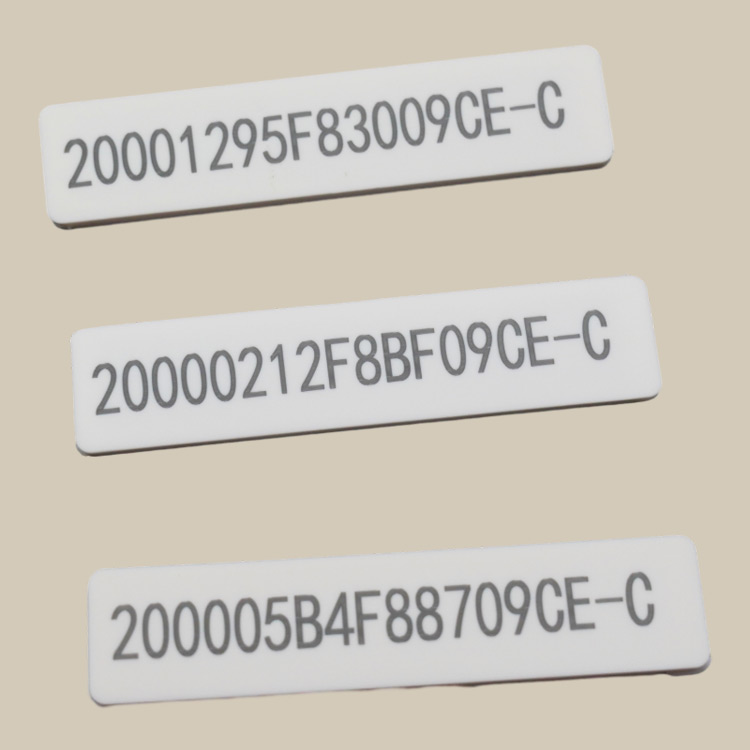

55*112MM UHF RFID Silicone Laundry Tag with Serial Number
| Compliance | EPC Class1 Gen2; ISO18000-6C |
| Frequency |
902-928MHz , 865~868MHz (Can customize frequency) |
| Chip | NXPUcode8/UCODE9/Impinj R6p or customized |
| Memory | EPC 96bits/128bits |
| Read/write | Yes (EPC) |
| Data Storage | 20 years |
| Lifetime |
200 wash cycles or 2 years from shipping date (whichever comes first) |
| Material | Silicone |
| Dimension | 55( L) x 12( W) x 2.5( H) (Can customize size ) |
| Storage Temperature | -40℃~ +85 ℃ |
| Operating Temperature |
1) Washing: 90℃(194οF), 15 minutes, 200 cysle 2) Pre-drying in Tumbler: 180℃(320οF), 30minutes 3) Ironer: 180℃(356οF), 10 seconds, 200 cycles 4) Sterilization Process: 135℃(275οF), 20 minutes |
| Mechanical Resistance | Up to 60 bars |
| Delivery format | Single |
| Installation Method | sewing |
| Weight | ~ 0.7g |
| Package | Antistatic bag and carton |
| Color | White,Grey ,yellow ,blue,red or customized |
| Power Supply | Passive |
| Chemicals | Normal common chemicals in the washing processes |
| RoHS | Compatible |
|
Read distance |
Up to 7meters (ERP=2W) Up to 5 meters( With ATIDAT880handheldreader) |
| Polarization | Liner |
